立式月台调整板
Gidrolast
![](https://asia.gidrolast.com/cn/wp-content/uploads/2015/10/1329-960x500.jpg)
技术规格
最大载重量:15 吨; |
最大长度:4 米; |
最大宽度:3 米; |
平台高度:600 毫米; |
平台行程:+/-最大 300 毫米(12"); |
斜坡旋转角度:60°. |
![](https://asia.gidrolast.com/cn/wp-content/uploads/2015/10/Dock-leveller-2-410x224.jpg)

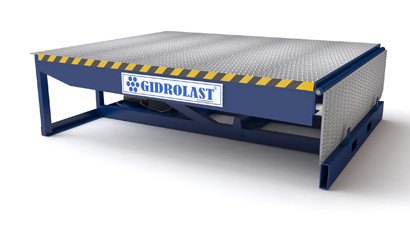

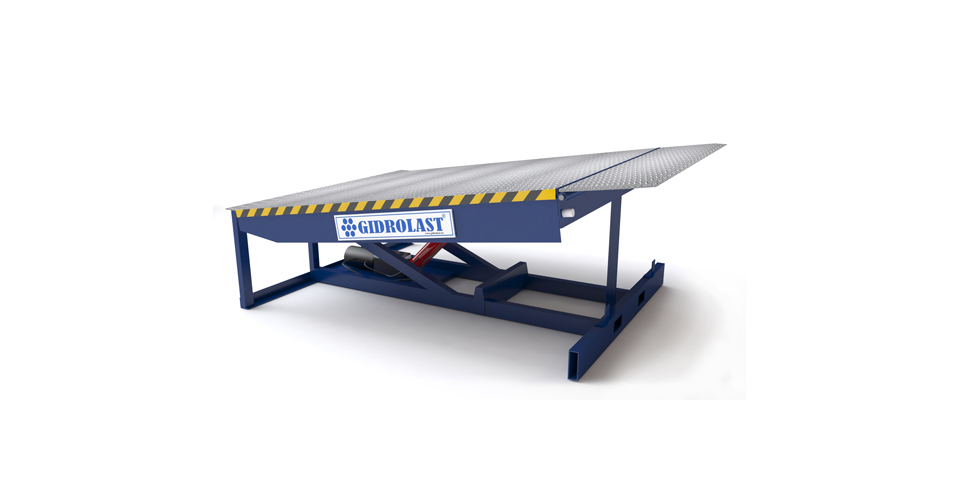

产品描述
固定式登车桥广泛用于站台和卡车之间的连接.
便于叉车移动.
设备的一端与站台高度一致,另一端连接卡车,可根据卡车的不同型号及装载过程中的不同运载情况调整高度.
还可根据客户的要求设计所需尺寸及负载能力.
产品细节
- 设计出众,紧凑的液压控制设备;
- Gidrolast 液压系统,方便操作及运行可靠;
- 整体式轴承连接防护板及作业平台,高抗压性及可靠性;
- Gidrolast 密封件具有出色的密封性能可稳固保护液压系统;
- 整体模块式 Gidrolast 液压站,密封性能出众,服务周期长;
- 高强度 “U” 型横梁设计,确保高负载情况下的持久运行而不发生变形;
- 防滑踏板使作业平台具有良好的防滑性能;
- 两侧均设计有轴承加固防护挡板,防止平台夹住脚趾的意外事故发生;
- 登车桥内部维修安全杆可令维修人员进入平台内部进行维修.
为什么选择我们
![](https://asia.gidrolast.com/cn/wp-content/uploads/2015/12/2-1.jpg)
意大利 Gidrolast 的品牌液压设备;
![](https://asia.gidrolast.com/cn/wp-content/uploads/2015/12/3-1.jpg)
材料的重要结构:13Mn6、SB49、А-516;
![](https://asia.gidrolast.com/cn/wp-content/uploads/2015/12/1.jpg)
工作温度: -40°С 至 +80°С, (-40°F 至 176°F);
![](https://asia.gidrolast.com/cn/wp-content/uploads/2015/10/71-100x100.png)
平均使用寿命长达 5 年;
![](https://asia.gidrolast.com/cn/wp-content/uploads/2015/12/5-1.jpg)
产品均通过 EAC 和 EC 认证;
![](https://asia.gidrolast.com/cn/wp-content/uploads/2015/12/6.jpg)
使用标准零部件;
![](https://asia.gidrolast.com/cn/wp-content/uploads/2015/10/8C36AEC228C6633BAE5CC354867DDB351C822CB766FD7EB226-pimgpsh_fullsize_distr-100x100.png)
欧洲拥有50 多家维修中心;
![](https://asia.gidrolast.com/cn/wp-content/uploads/2015/10/81-100x100.png)
3万圈保修.
